Electric Longboard Build

     Getting ready to go off the school, I wanted a way to get around campus. I came across a project on Instuctables and decided to have a go at an electric longboard. Believe it or not, I was already familiar with most all of the components. They are mostly parts designed for RC planes and cars.

Parts List
<iframe height="325" src="https://docs.google.com/spreadsheets/d/1xR_aUlxYzX9uFCSO_YDhbAmZk9V2AzkAMv-N1cEVp_Y/pubhtml?widget=true&headers=false" width="650"></iframe>

Additional Specs.

<ul><li>38” Board</li><li>70mm wheels</li><li>19:36 gear ratio</li><li>3D printed rear pulley</li><li>Wii Receiver based on Atmega 328</li></ul><div>
</div><div class="separator" style="clear: both; text-align: center;"><iframe allowfullscreen="" class="YOUTUBE-iframe-video" data-thumbnail-src="https://i.ytimg.com/vi/Ek9_wVY67KU/0.jpg" frameborder="0" height="400" src="https://www.youtube.com/embed/Ek9_wVY67KU?feature=player_embedded" width="650"></iframe></div><div>
</div>

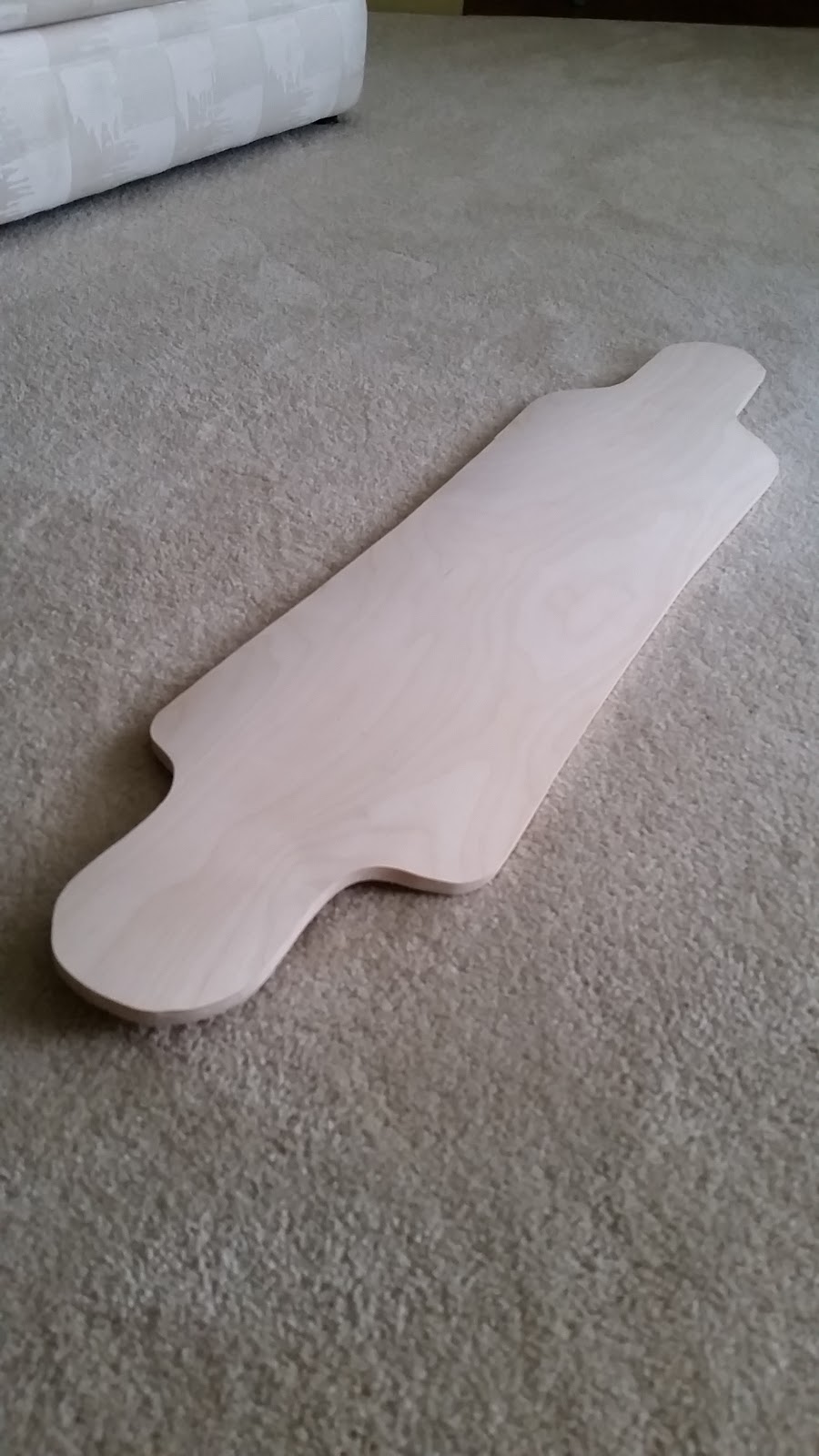

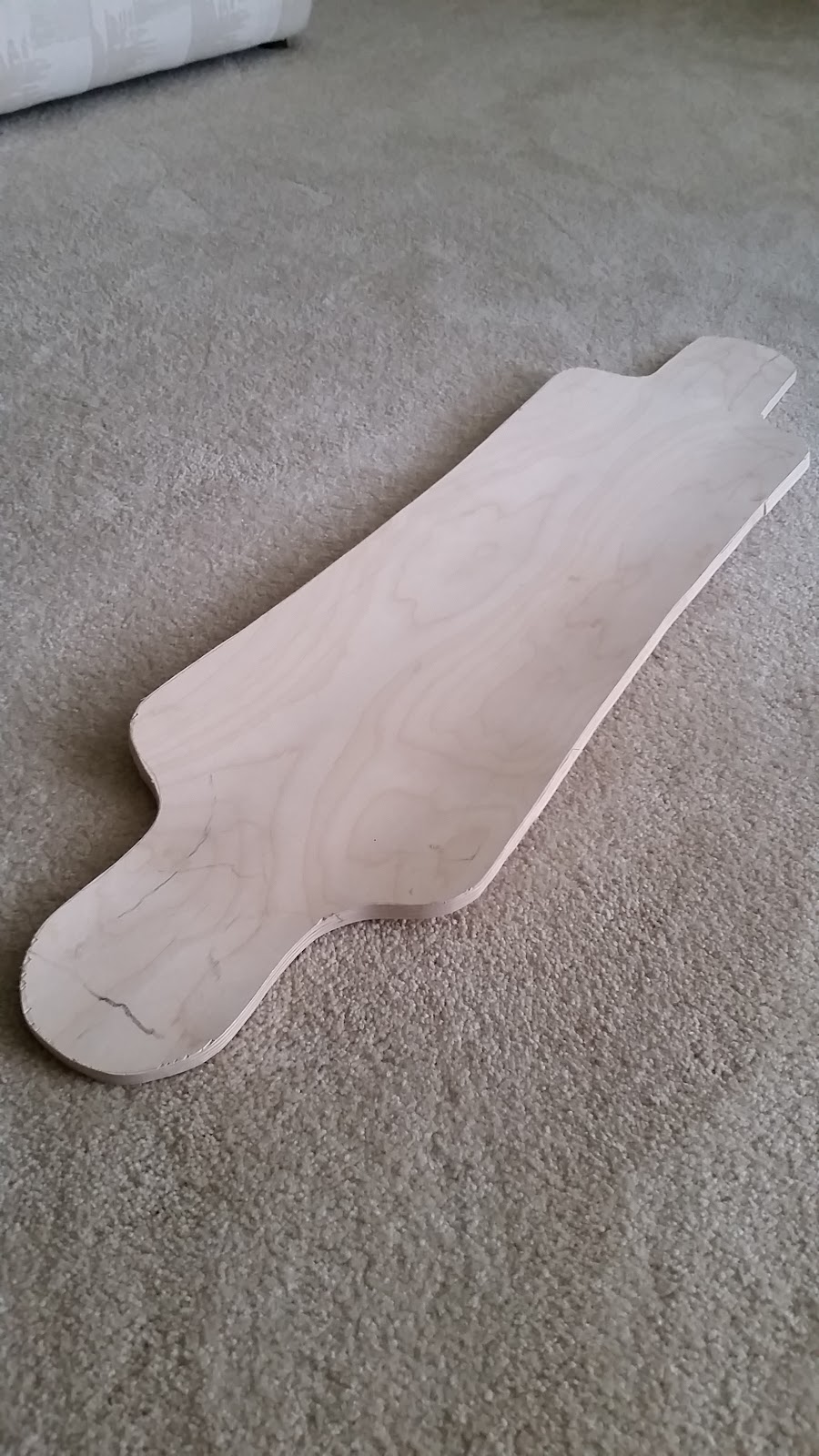

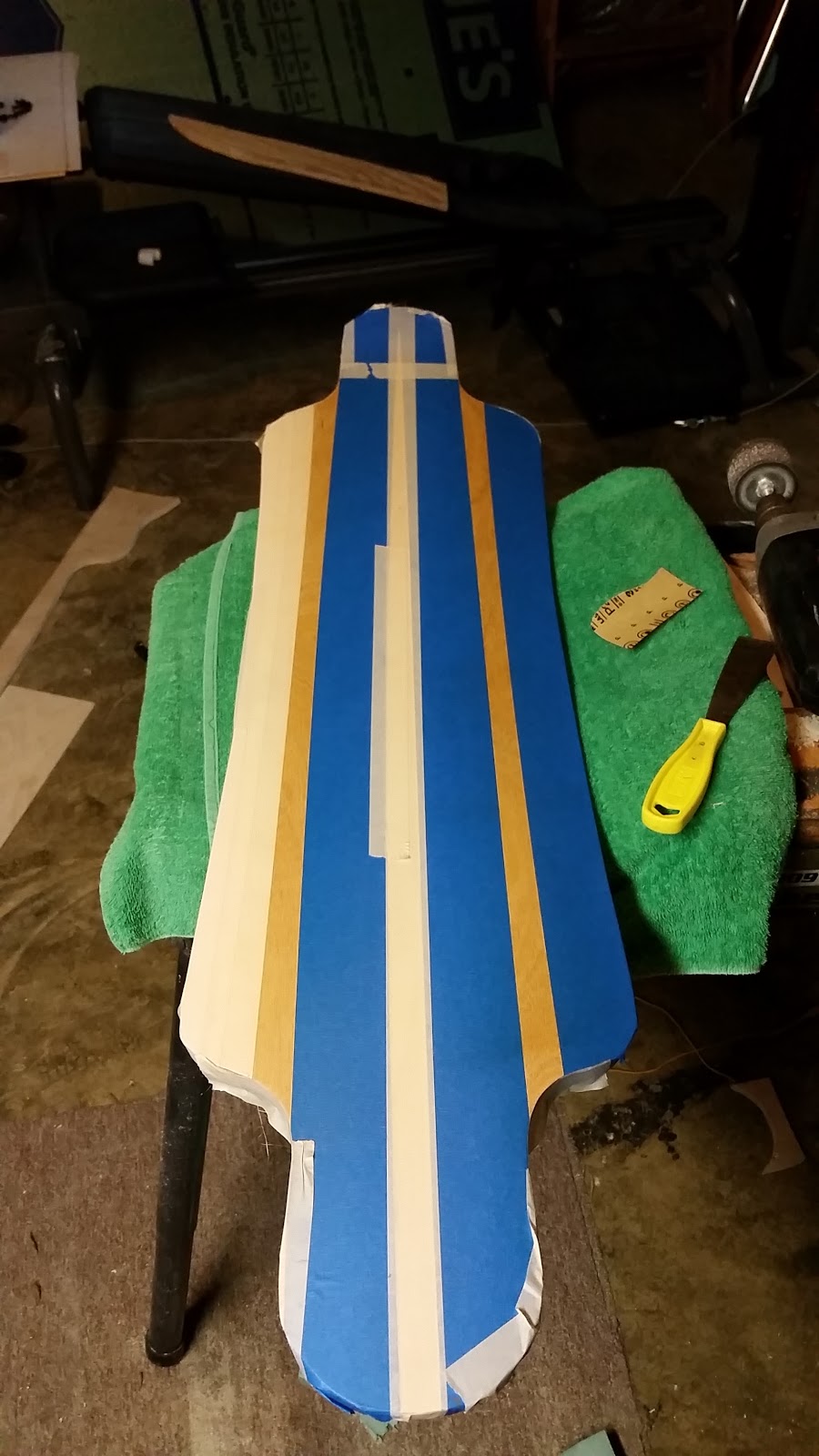

Building the Board

<div class="separator" style="clear: both; text-align: center;"></div><div class="separator" style="clear: both; text-align: center;"></div><div class="separator" style="clear: both; text-align: center;"></div>

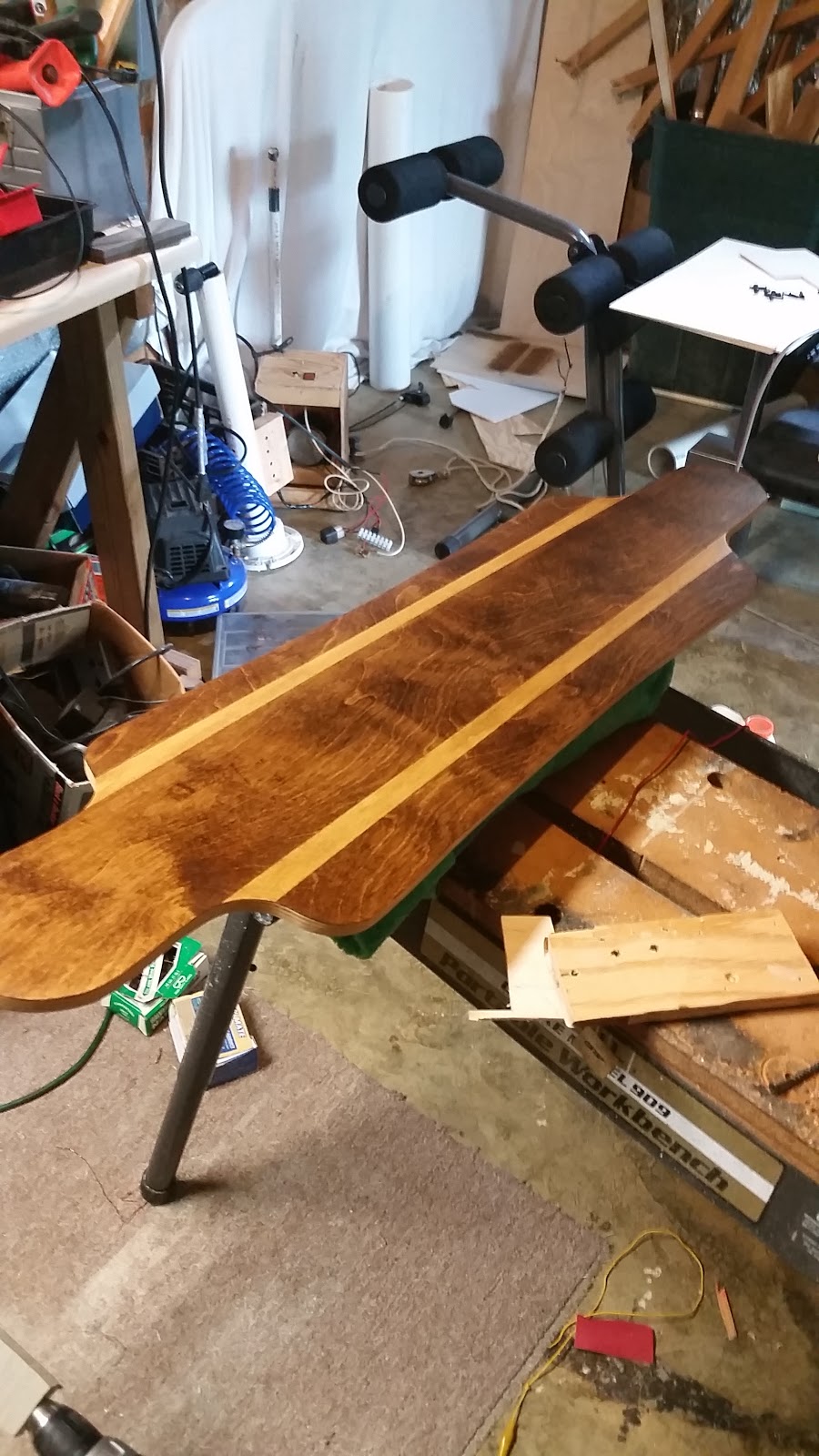

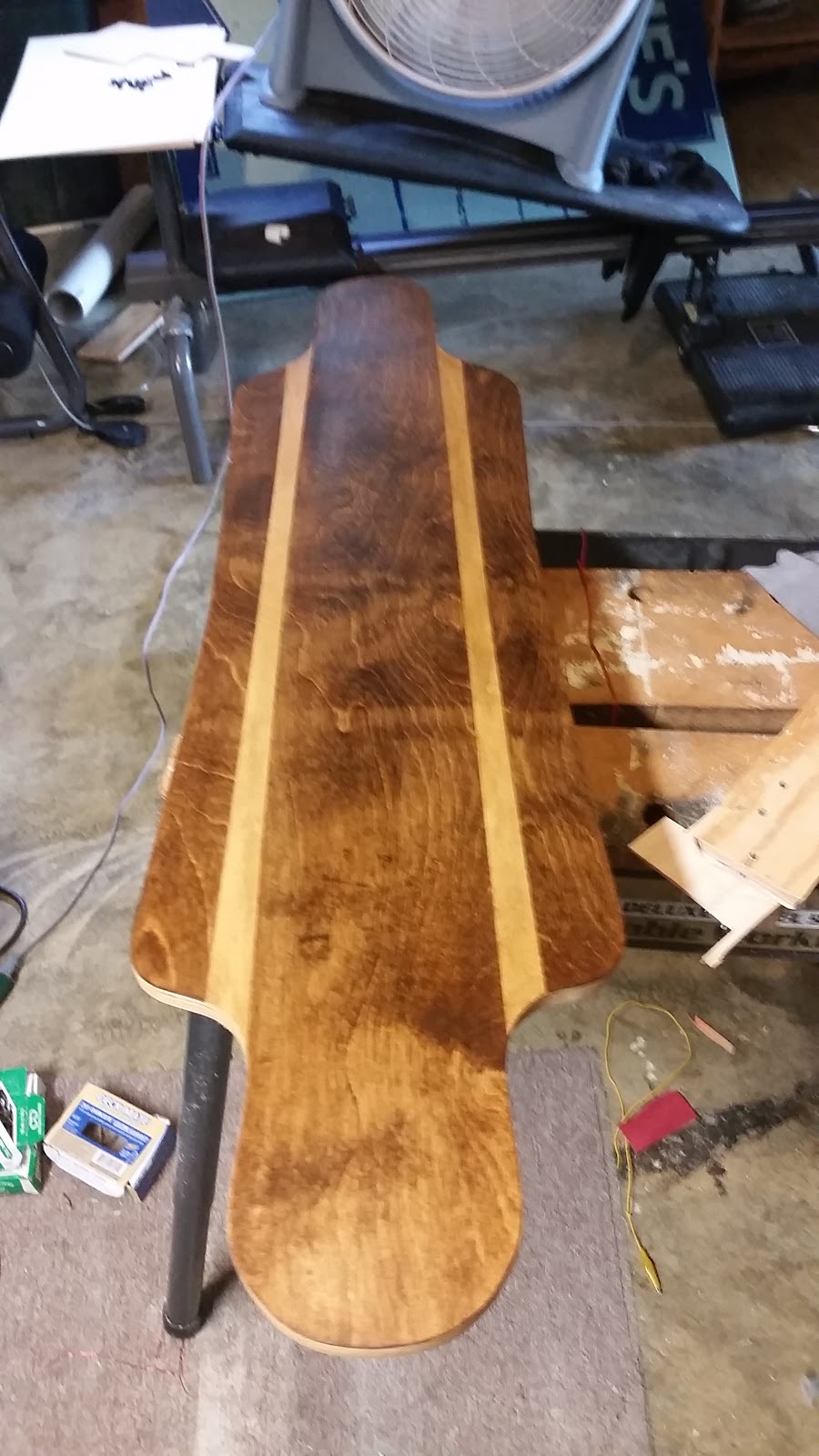

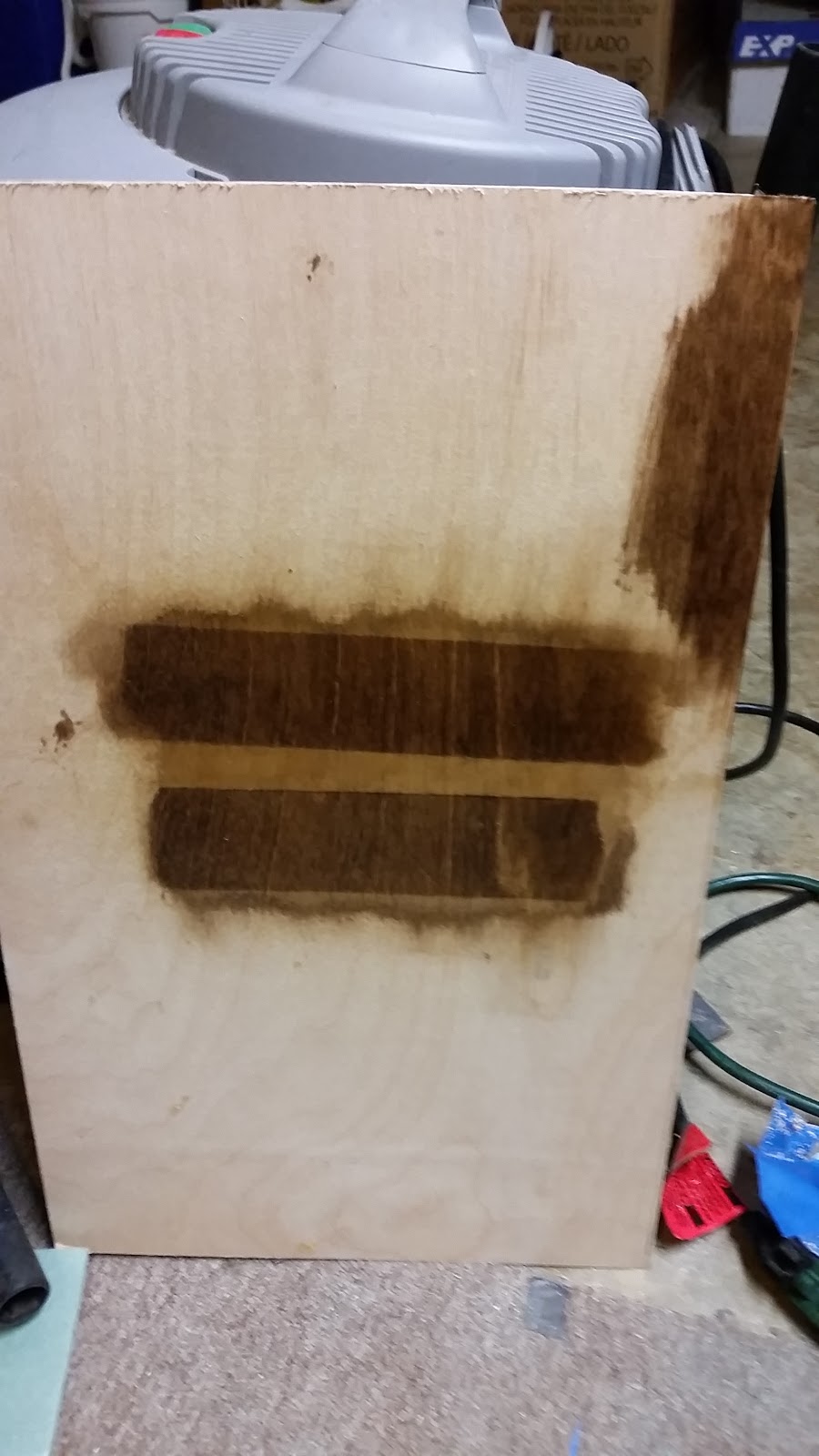

<table cellpadding="0" cellspacing="0" class="tr-caption-container" style="margin-left: auto; margin-right: auto; text-align: center;"><tbody><tr><td style="text-align: center;"></td></tr><tr><td class="tr-caption" style="text-align: center;">Testing Stain Technique</td></tr></tbody></table>
<div class="separator" style="clear: both; text-align: center;"></div>

<div class="separator" style="clear: both; text-align: center;"></div>

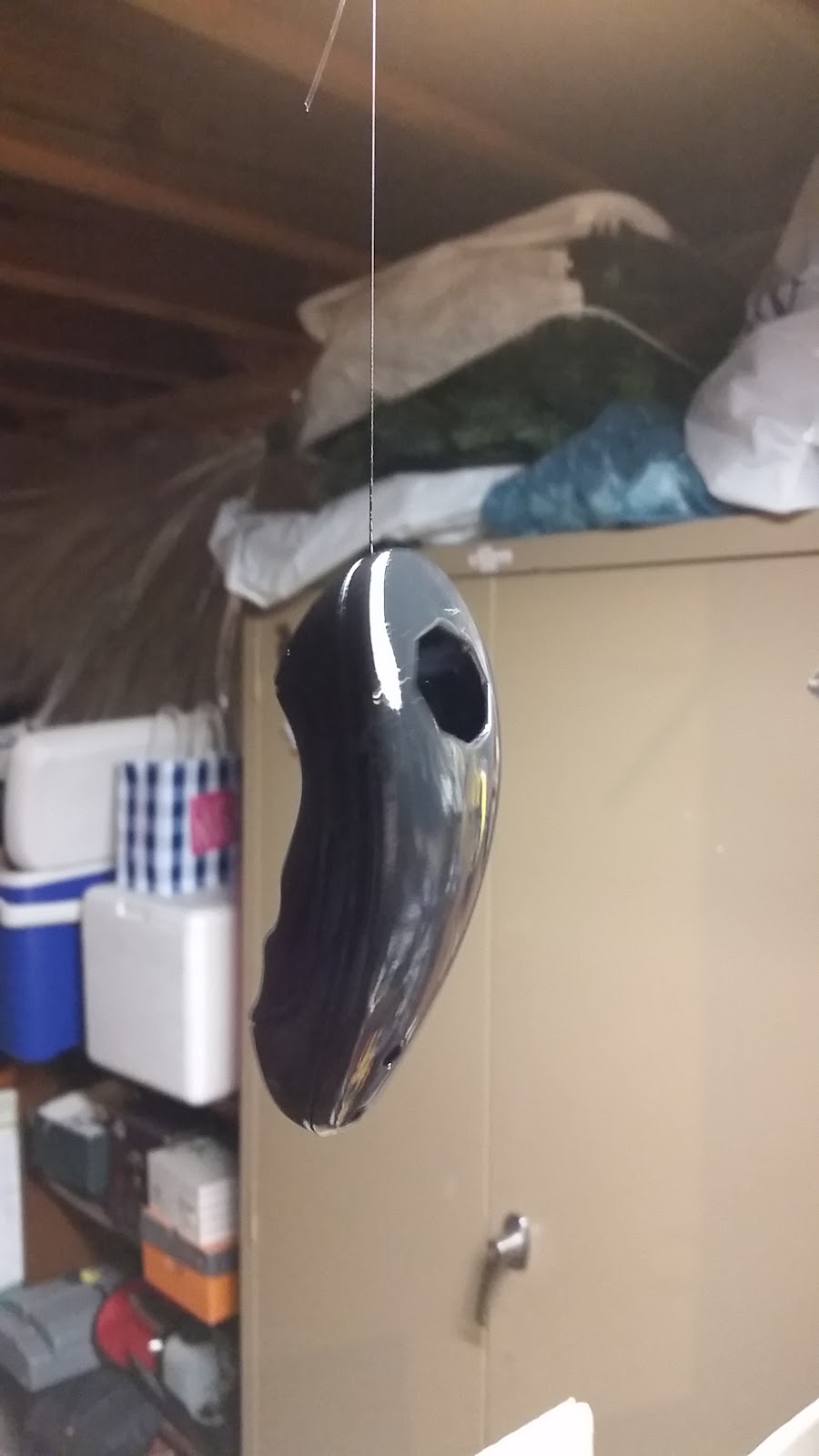

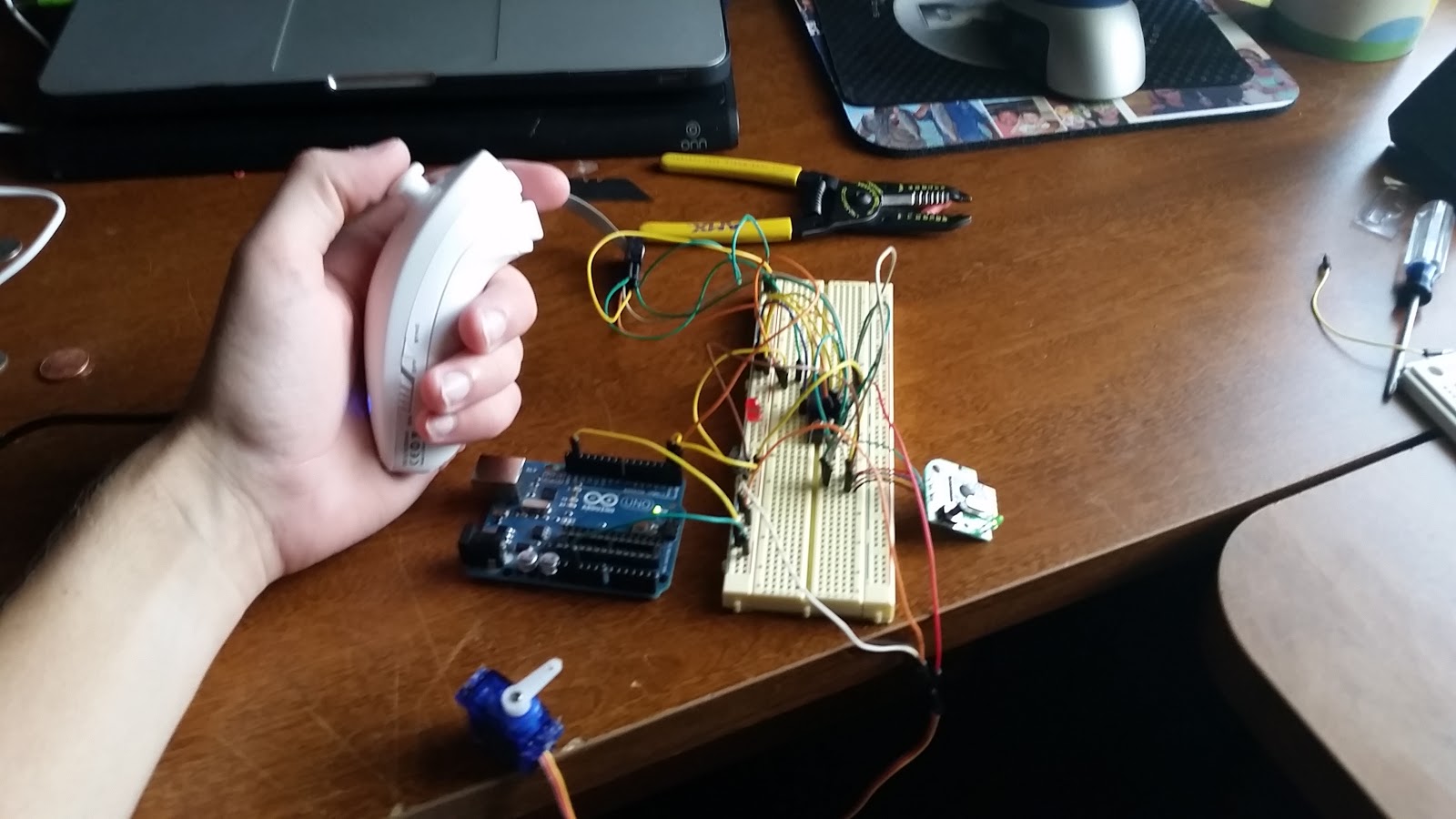

<div class="separator" style="clear: both; text-align: center;"></div><div class="separator" style="clear: both; text-align: left;">The Receiver / Controller</div><div class="separator" style="clear: both; text-align: left;">
</div><div class="separator" style="clear: both; text-align: center;"></div>

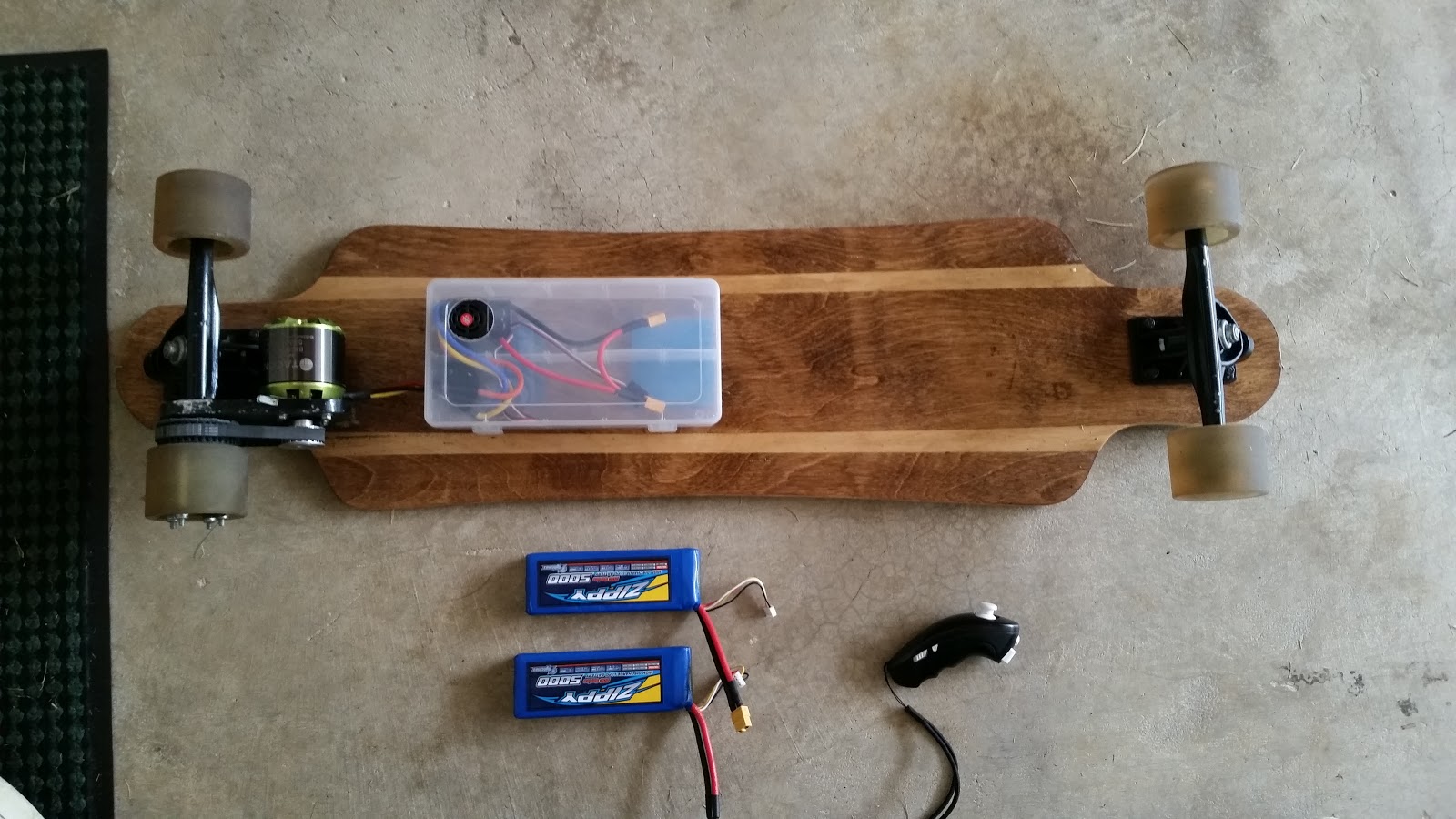

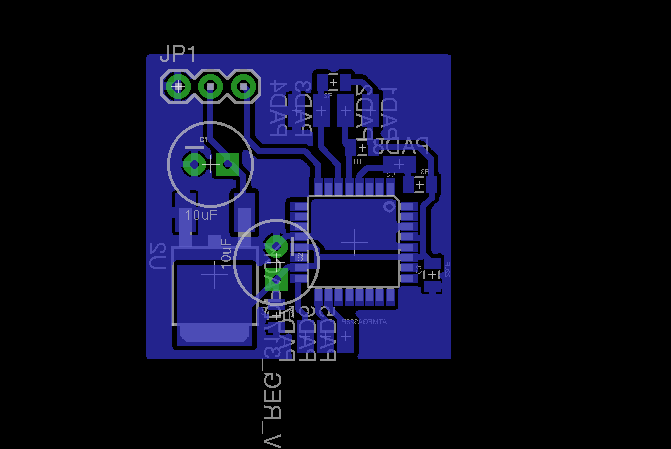

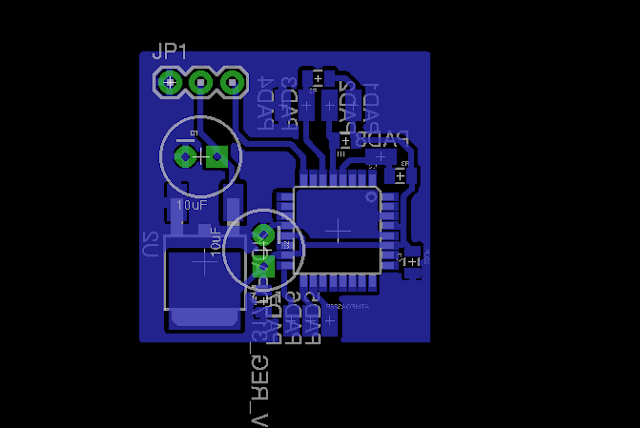

<div style="text-align: right;"></div><table align="center" cellpadding="0" cellspacing="0" class="tr-caption-container" style="margin-left: auto; margin-right: auto; text-align: center;"><tbody><tr><td style="text-align: center;"></td></tr><tr><td class="tr-caption" style="text-align: center;">Final PCB</td></tr></tbody></table><table align="center" cellpadding="0" cellspacing="0" class="tr-caption-container" style="margin-left: auto; margin-right: auto; text-align: center;"><tbody><tr><td style="text-align: center;"></td></tr><tr><td class="tr-caption" style="text-align: center;">36t 3D Printed Drive Gear (ABS)</td></tr></tbody></table><table align="center" cellpadding="0" cellspacing="0" class="tr-caption-container" style="margin-left: auto; margin-right: auto; text-align: center;"><tbody><tr><td style="text-align: center;"></td></tr><tr><td class="tr-caption" style="text-align: center;">Laying out the parts</td></tr></tbody></table>
<div class="separator" style="clear: both; text-align: center;"></div>
<div class="separator" style="clear: both; text-align: center;"></div>
<div class="separator" style="clear: both; text-align: center;"></div>
<div class="separator" style="clear: both; text-align: center;"></div>

<div class="separator" style="clear: both; text-align: center;"></div><div class="separator" style="clear: both; text-align: center;">

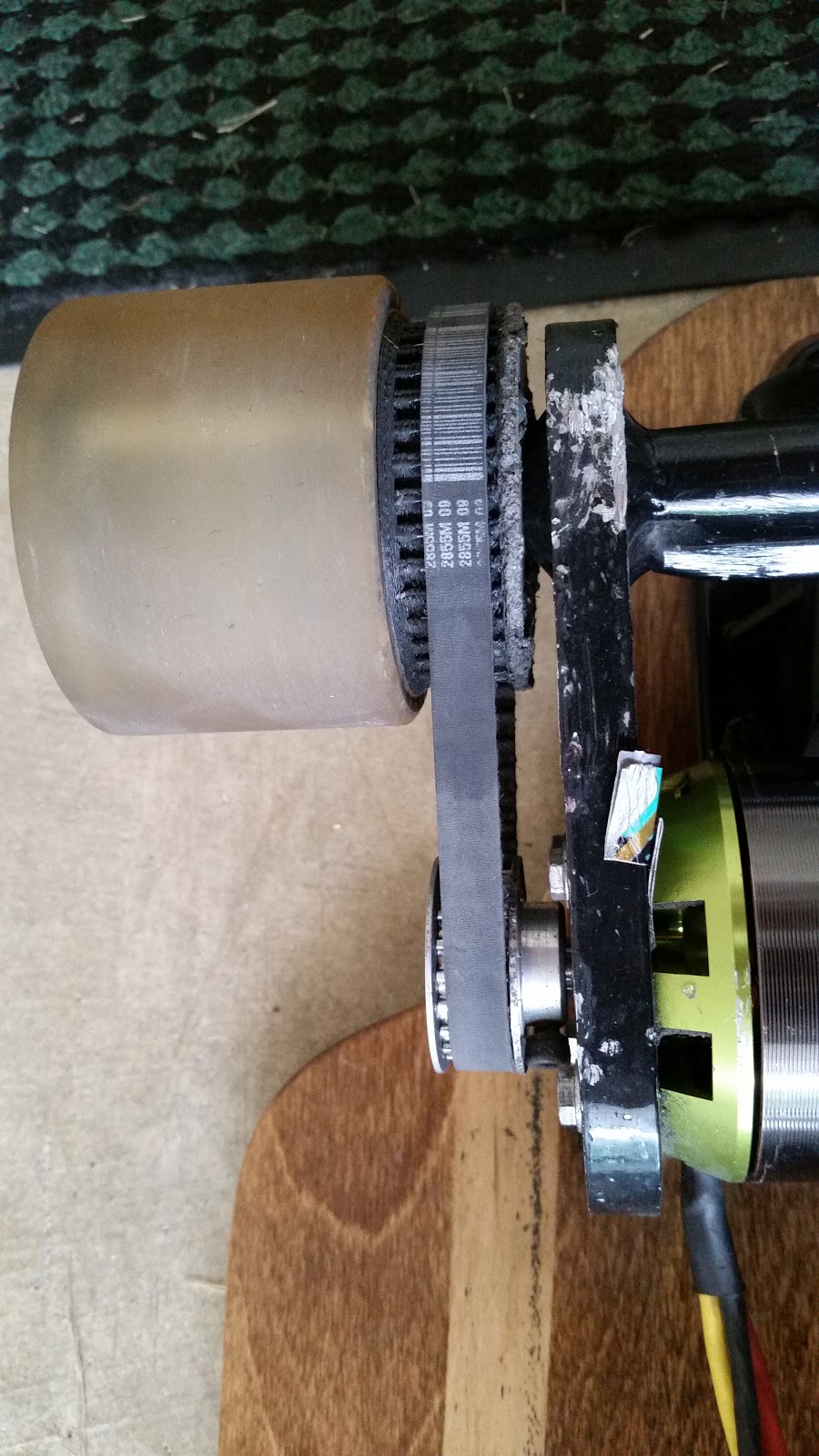

</div><div class="separator" style="clear: both; text-align: left;">After Several Miles of Use</div>
<div class="separator" style="clear: both; text-align: center;"></div>
<div class="separator" style="clear: both; text-align: center;"></div>
<div class="separator" style="clear: both; text-align: center;"></div>

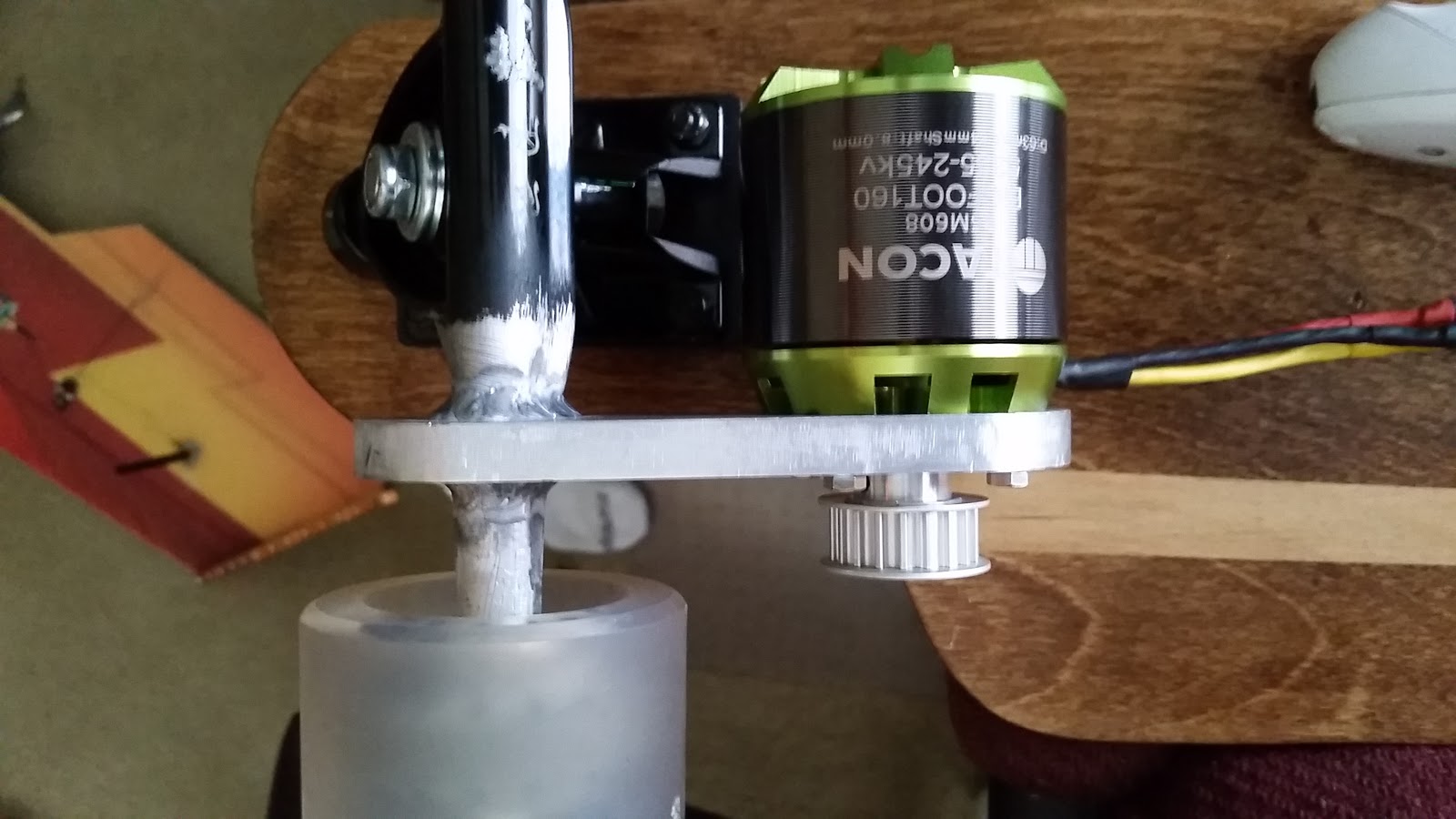

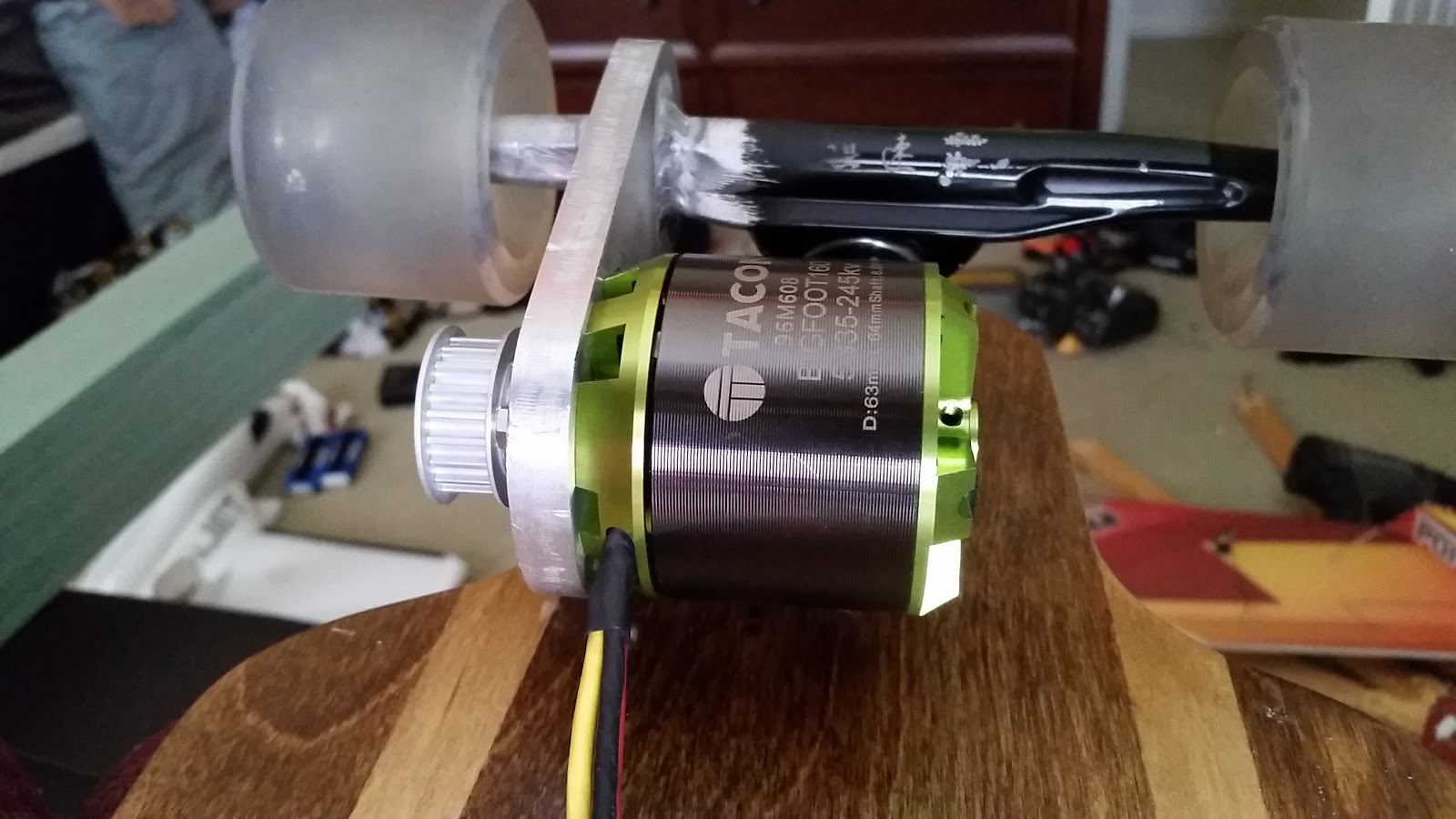

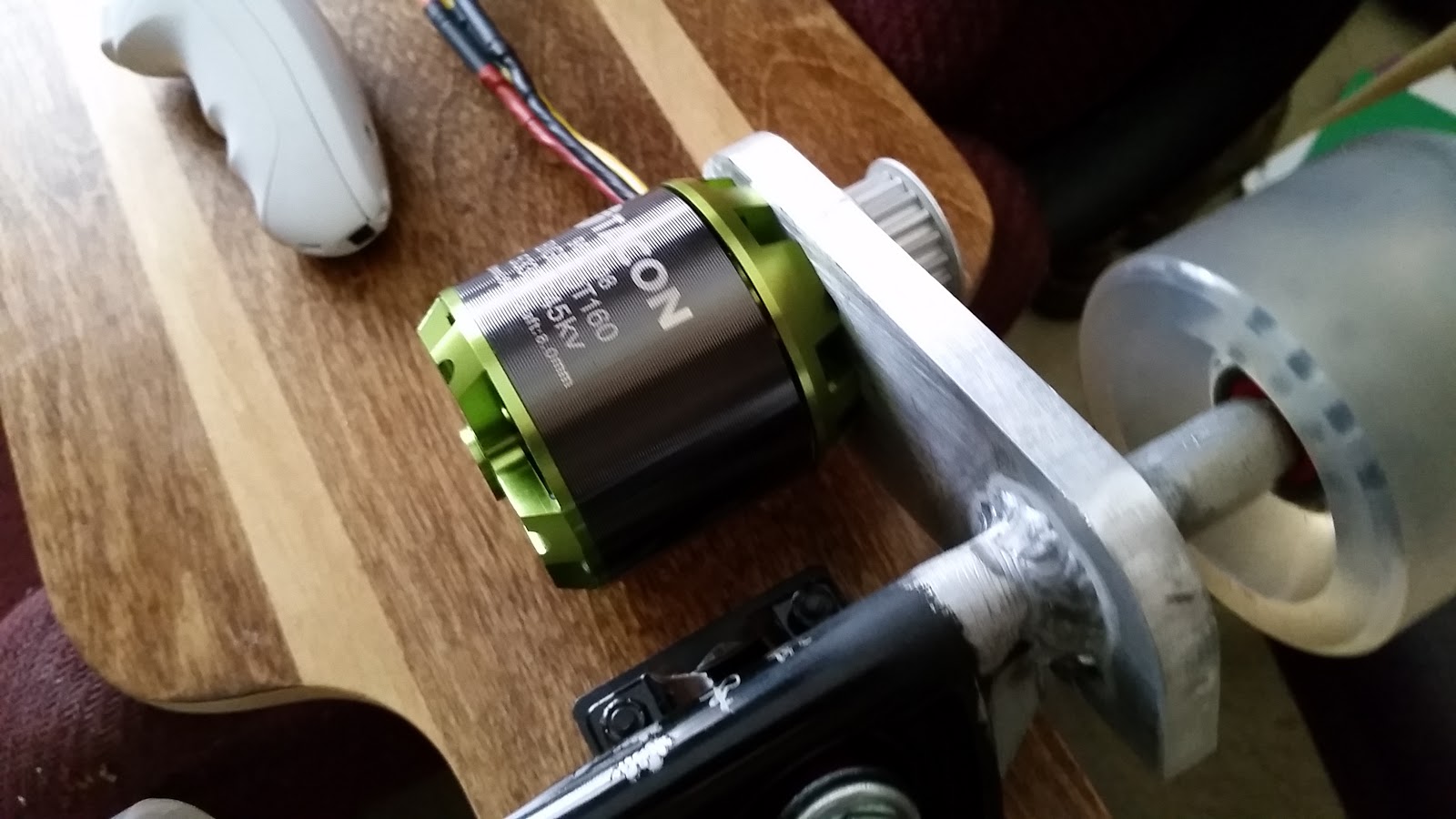

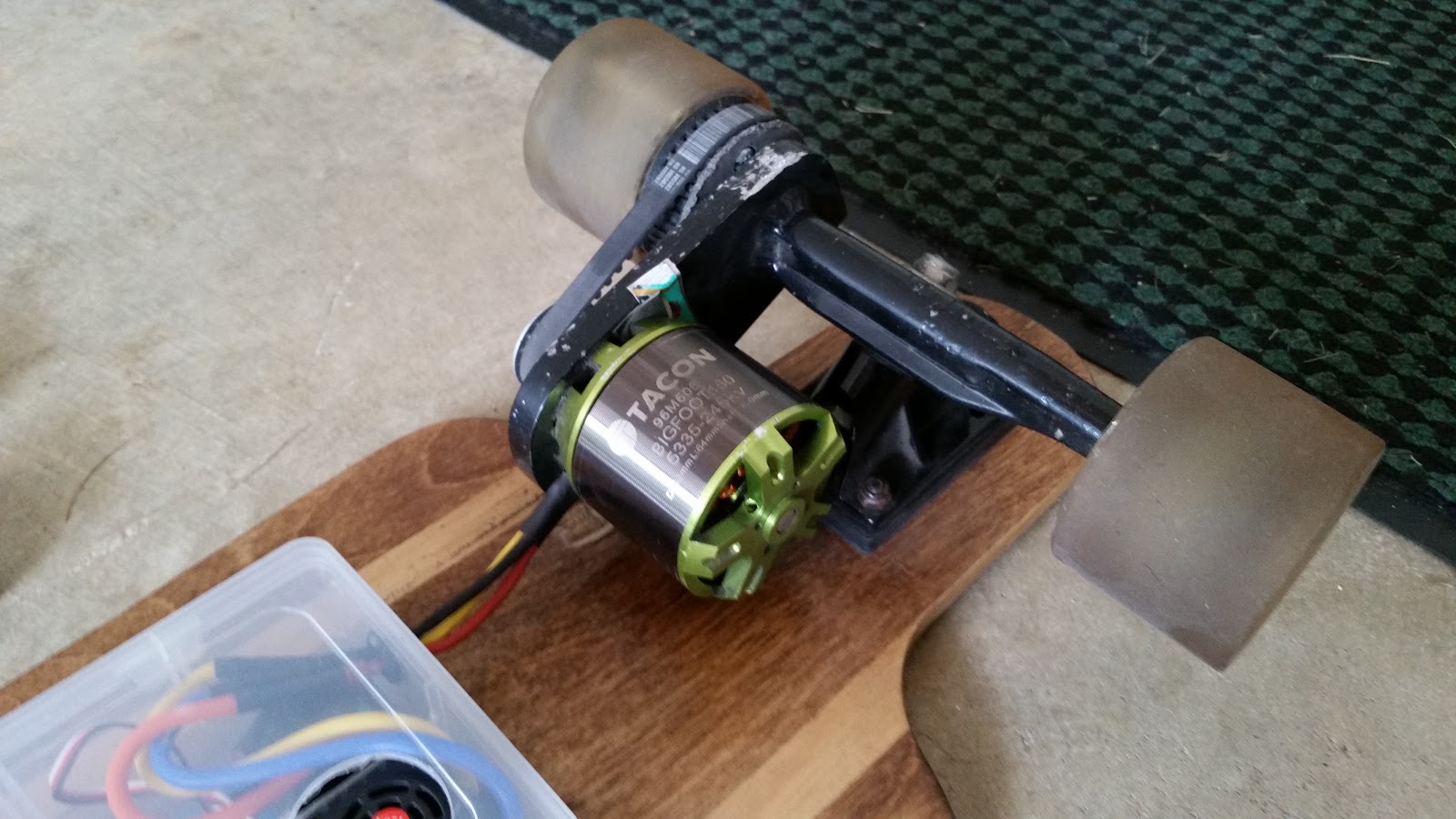

<table align="center" cellpadding="0" cellspacing="0" class="tr-caption-container" style="margin-left: auto; margin-right: auto; text-align: center;"><tbody><tr><td style="text-align: center;"></td></tr><tr><td class="tr-caption" style="text-align: center;">Motor shimmed with aluminum strips</td></tr></tbody></table><div class="separator" style="clear: both; text-align: center;">
</div><div class="separator" style="clear: both; text-align: left;">Final Thoughts</div><div class="separator" style="clear: both; text-align: left;">I am very happy with how this build turned out. I have the perfect amount of torque and just enough gearing for great speed (25mph top speed). I may really regret using cheap trucks in the future. Only broken one belt so far. I can get about 5 - 6 miles on the 5000mAh batteries. Happy to answer and questions about the build.</div>
