With a few improvements on my mind I decided to build a new quad. With speed, efficiency, and durability in mind I constructed this new quad.
<div class="separator" style="clear: both; text-align: center;">
</div><div class="separator" style="clear: both; text-align: center;">
</div><div class="separator" style="clear: both; text-align: center;">
</div>
Here are some pictures from the build:
<table align="center" cellpadding="0" cellspacing="0" class="tr-caption-container" style="margin-left: auto; margin-right: auto; text-align: center;"><tbody><tr><td style="text-align: center;">

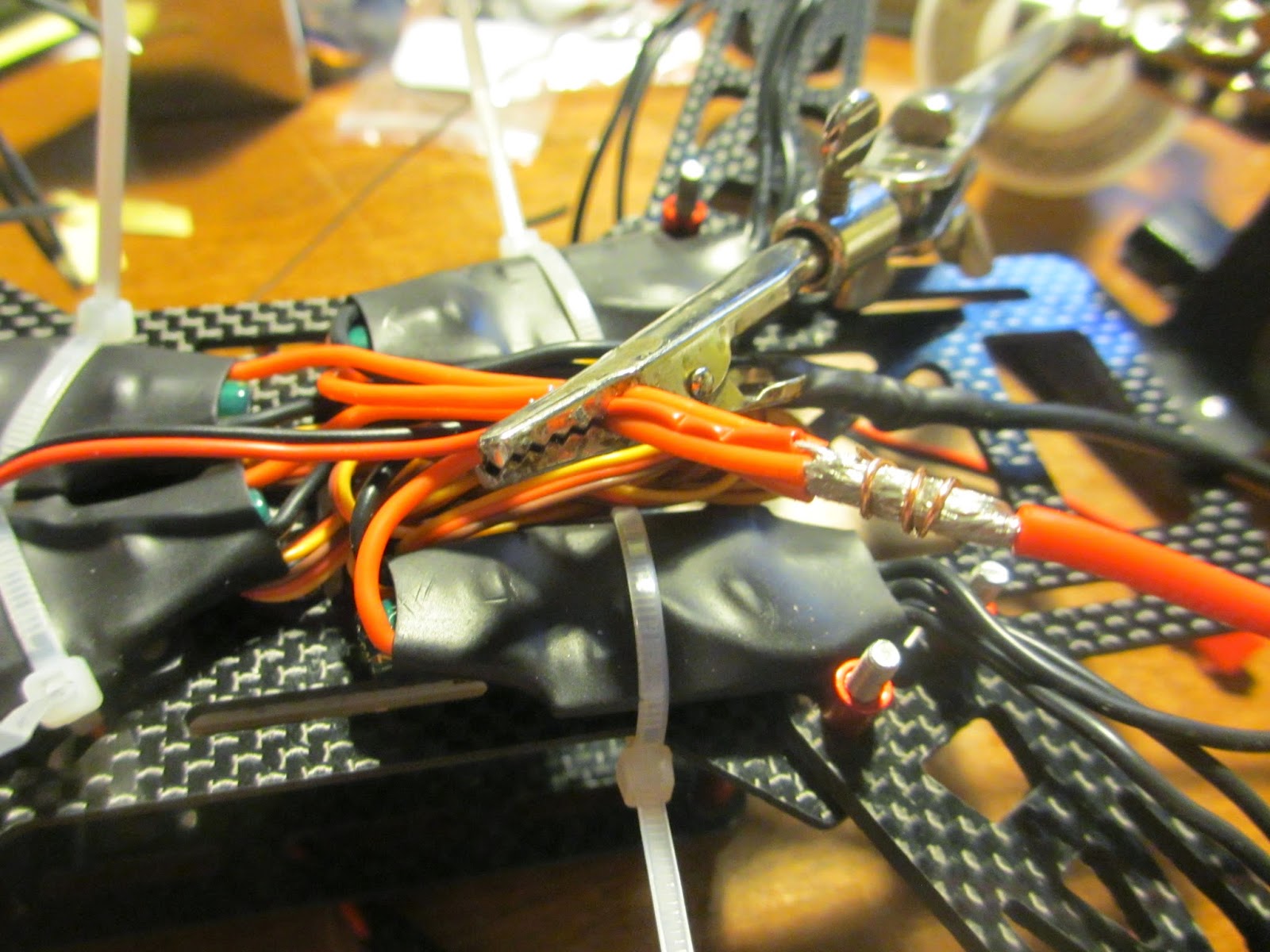

</td></tr><tr><td class="tr-caption" style="text-align: center;">Soldering Multiple Wires</td></tr></tbody></table><table align="center" cellpadding="0" cellspacing="0" class="tr-caption-container" style="margin-left: auto; margin-right: auto; text-align: center;"><tbody><tr><td style="text-align: center;">

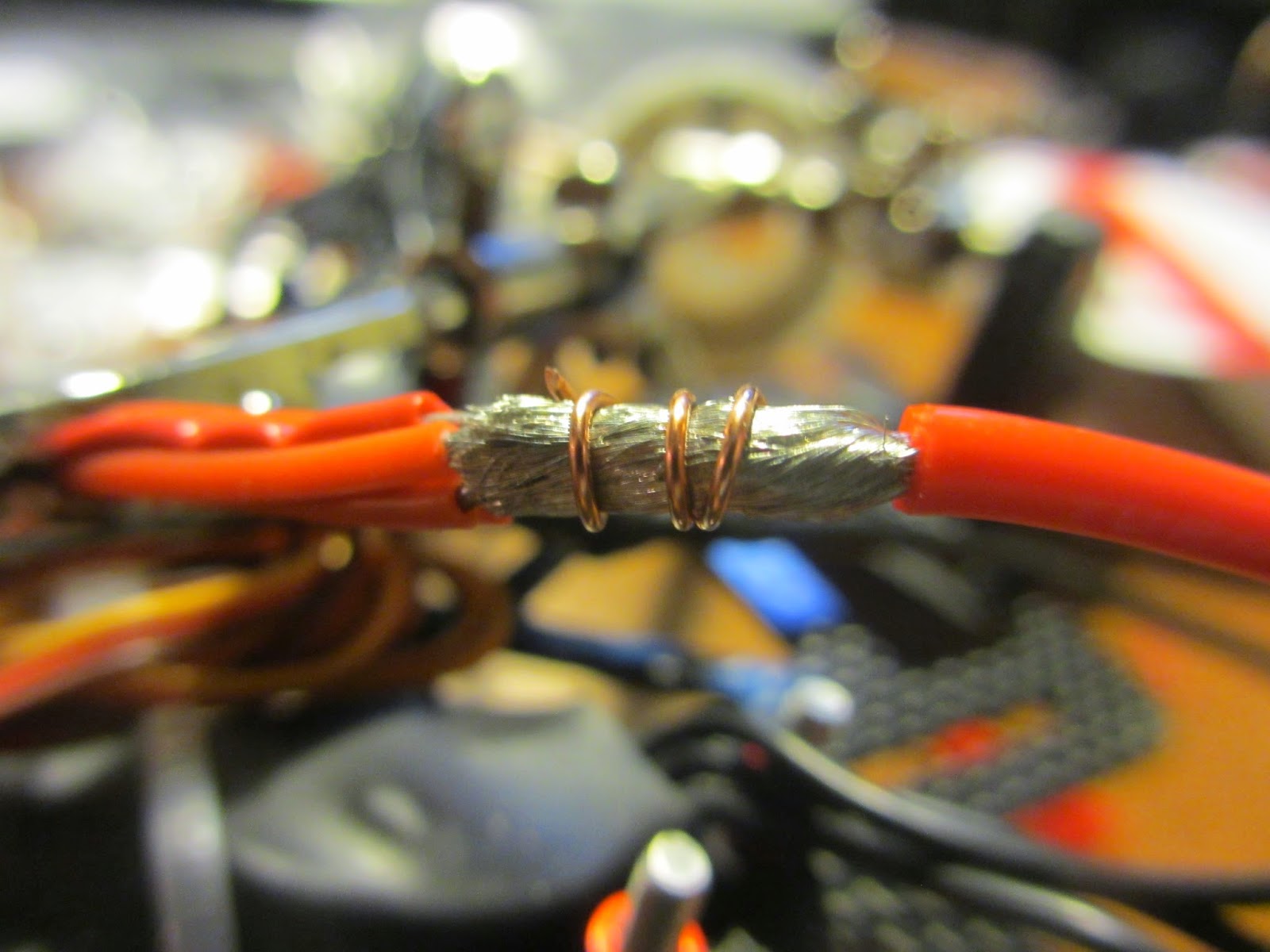

</td></tr><tr><td class="tr-caption" style="text-align: center;">Soldering Multiple Wires</td></tr></tbody></table><table align="center" cellpadding="0" cellspacing="0" class="tr-caption-container" style="margin-left: auto; margin-right: auto; text-align: center;"><tbody><tr><td style="text-align: center;">

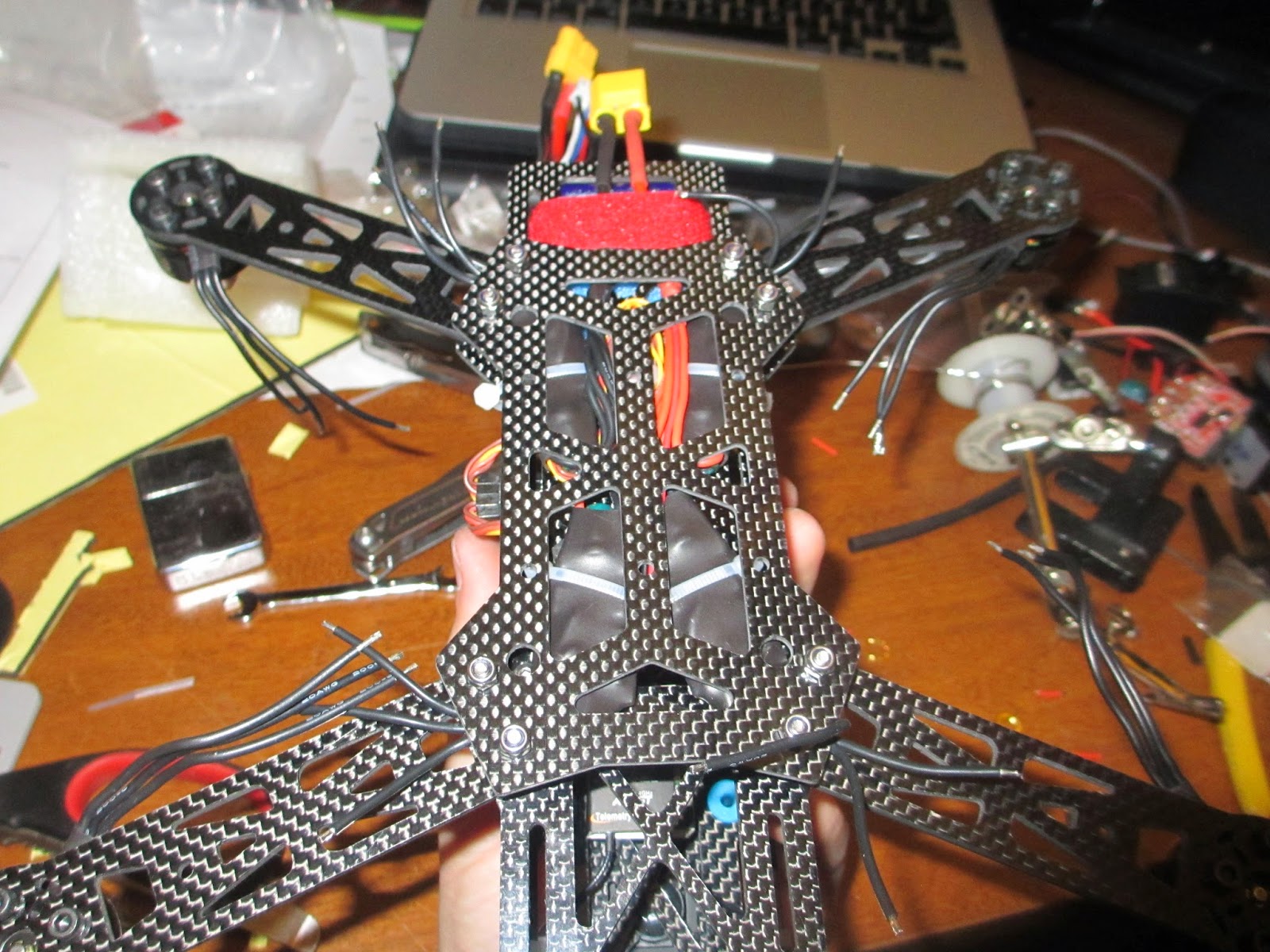

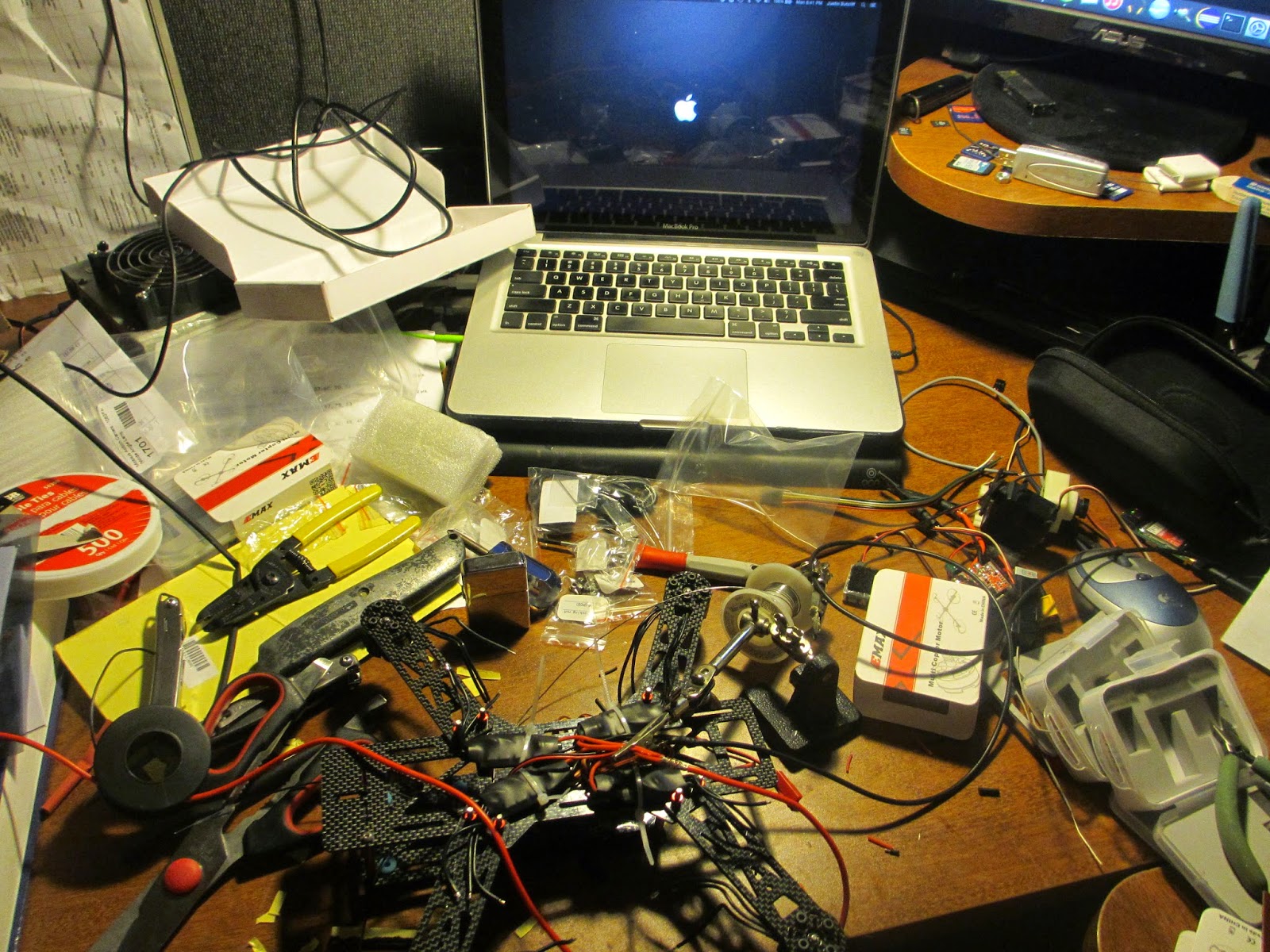

</td></tr><tr><td class="tr-caption" style="text-align: center;">Messy Workbench as Always</td></tr></tbody></table><div class="separator" style="clear: both; text-align: center;">
</div><div class="separator" style="clear: both; text-align: center;">
</div><div class="separator" style="clear: both; text-align: center;">
</div><table align="center" cellpadding="0" cellspacing="0" class="tr-caption-container" style="margin-left: auto; margin-right: auto; text-align: center;"><tbody><tr><td style="text-align: center;">

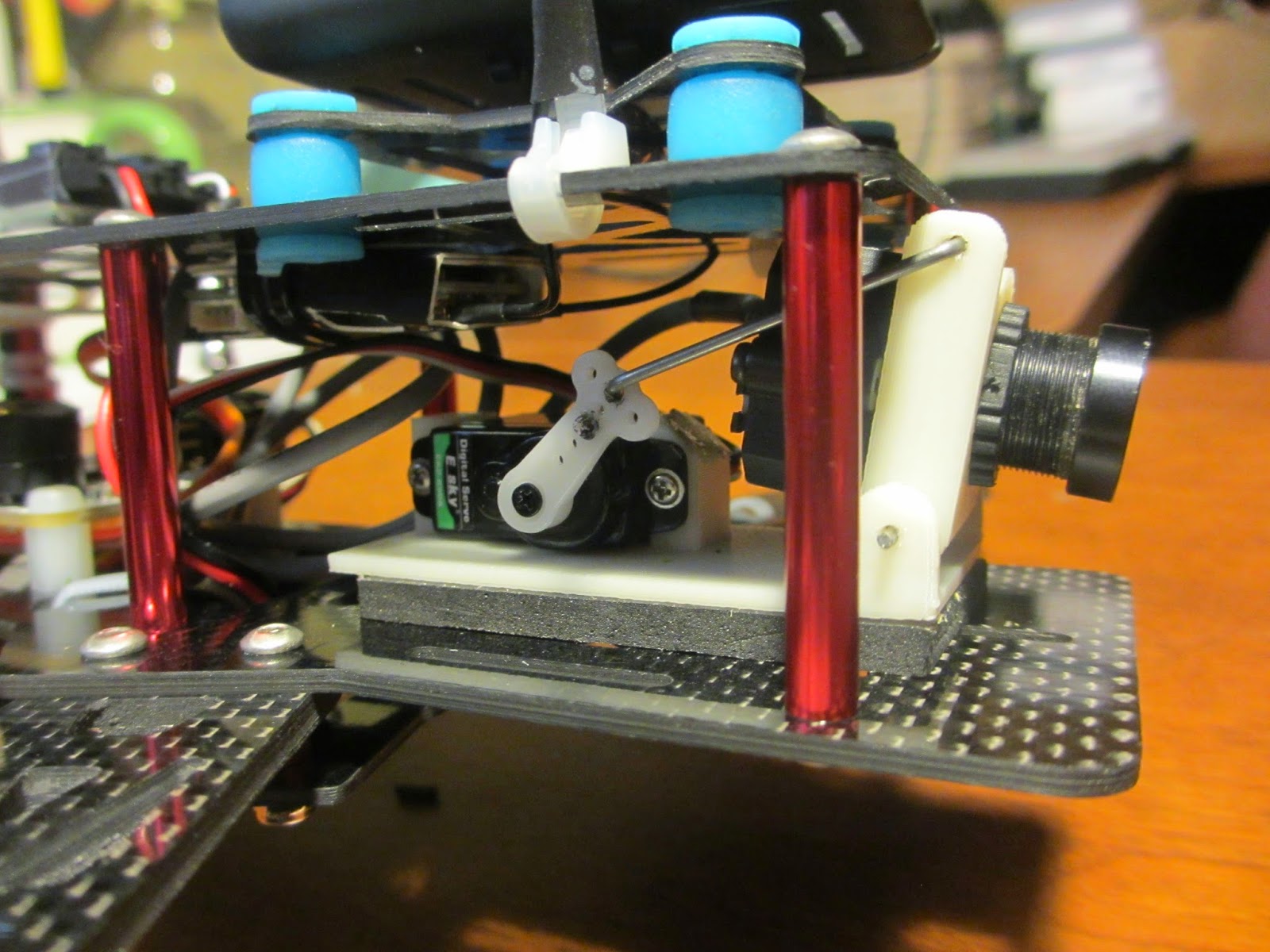

</td></tr><tr><td class="tr-caption" style="text-align: center;">Pitch Gimbal</td></tr></tbody></table>
<div class="separator" style="clear: both; text-align: center;">
</div>Frame - NightHawk 250 Pro
I decided to go with a less popular frame, the Nighthawk 250 pro from BestHobbyMall.com. At around $50 for the full carbon frame, I couldn’t be happier with the quality. There was plenty of space for all my components.

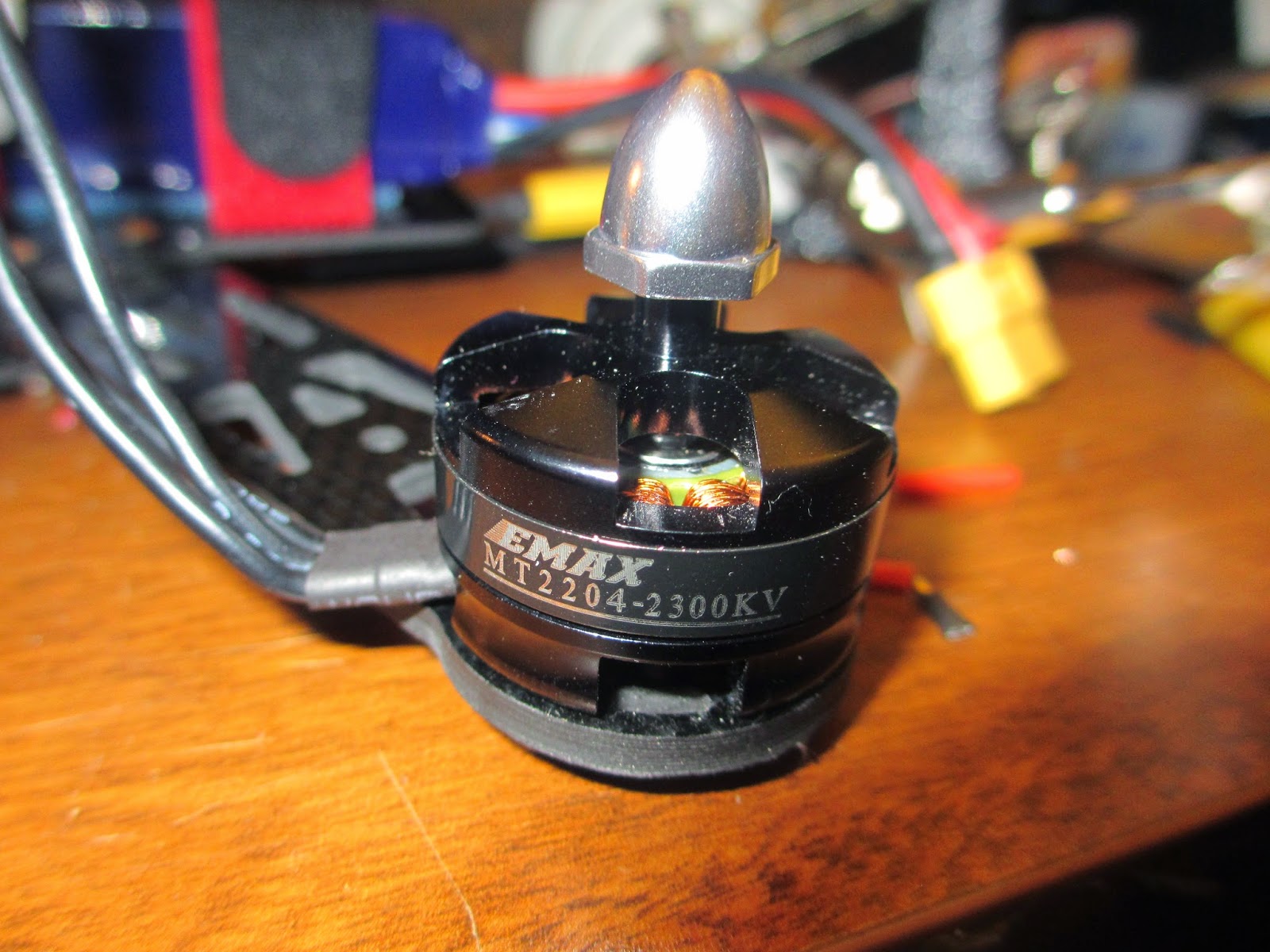

Motors - EMAX 2204 2300kv
So far, these motors have been great. After several hard crashes, the magnets and bearings have held up very well unlike my old RCX 1804s. I would highly recommend these motors.
ESC - EMAX 12A
A great, reliable choice of ESC. Not much else to say.
Controller - NAZE32 Acro
Instead of running baseflight, I’m giving the cleanflight fork a shot. Not sure how I feel about it yet. The hardware is still my favorite choice when it comes to control boards.
Battery - Nanotech 1300mAH 45-90C 3s
So far these batteries have held up well to high current draws. They outperform my Zippy batteries and I can usually fly a bit longer on these at 5 - 6 mins.
Receiver - FrSky D4R-II
One of my favorite receivers with 8channel PPM and telemetry all packed into a tiny footprint.

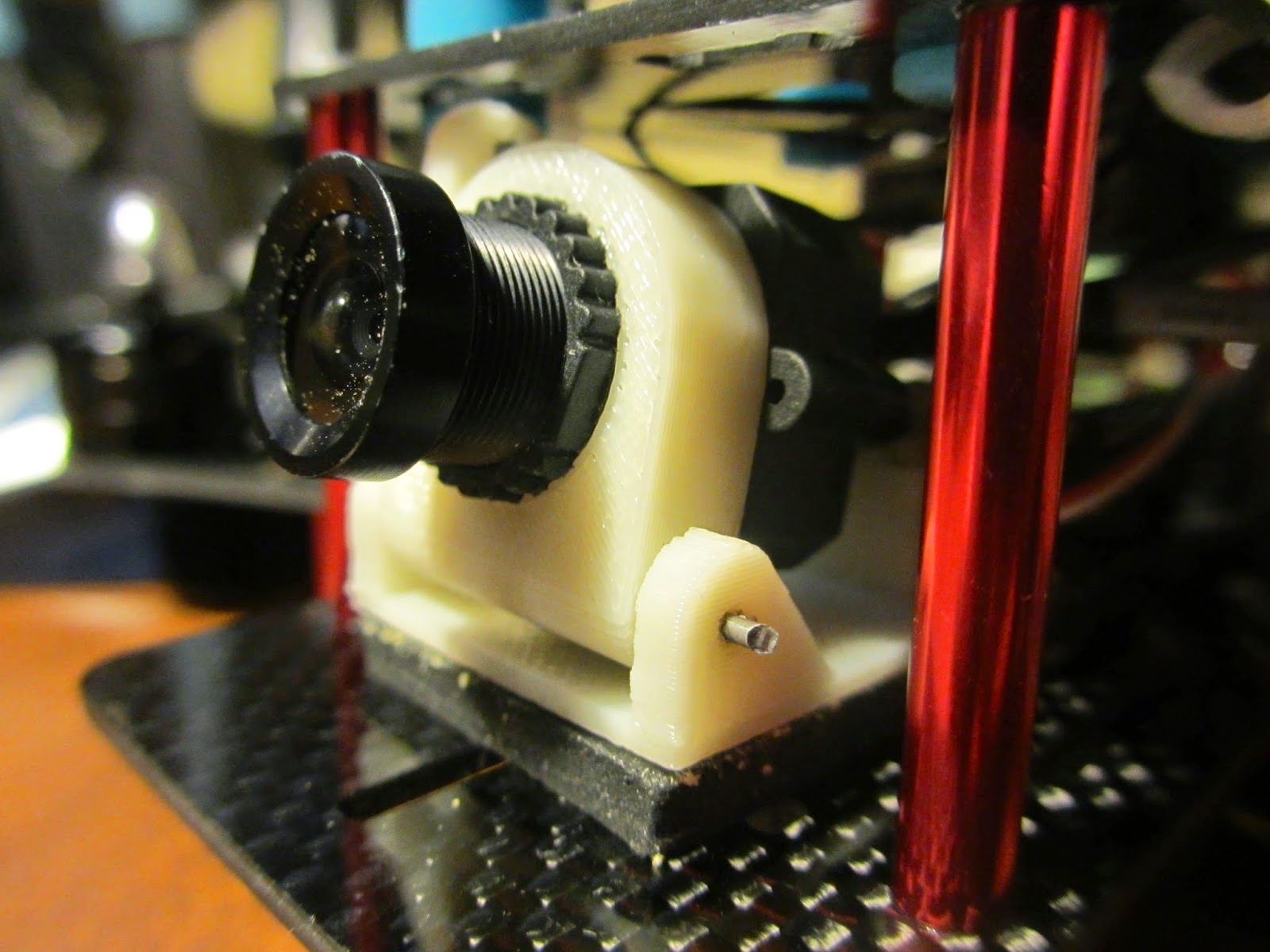

FPV - IRC 600mW & 600tvl CMOS
The original camera from my Fatshark stater kit and a high power 5.8ghz transmitter. Working great so far.
Props - HQ5040, HQ5045, HQ6030
5040 - Good props for smaller 1806 motors
5045 - Great for bigger motors that can’t run 6” props. Very fast: high pitch
6030 - Good for getting heavier quads in the air.
